Detailed Specifications
Network
Technology
GSM / HSPA / LTE
2G bands
GSM 850 / 900 / 1800 / 1900 - D6603, D6643, D6653, D6616
3G bands
HSDPA 850 / 900 / 1700 / 1900 / 2100 - D6603, D6643, D6616
4G bands
1, 2, 3, 4, 5, 7, 8, 13, 17, 20 - D6603
Speed
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
Launch
Announced
2014, September 03. Released 2014, November 06
Status
Discontinued
Body
Dimensions
146 x 72 x 7.3 mm (5.75 x 2.83 x 0.29 in)
Weight
152 g (5.36 oz)
Build
Glass front, glass back, aluminum frame
SIM
Nano-SIM
Display
Type
IPS LCD
Size
5.2 inches, 74.5 cm2 (~70.9% screen-to-body ratio)
Resolution
1080 x 1920 pixels, 16:9 ratio (~424 ppi density)
Protection
Scratch-resistant glass, oleophobic coating
Platform
OS
Android 4.4.4 (KitKat), upgradable to 6.0 (Marshmallow)
Chipset
Qualcomm MSM8974AC Snapdragon 801 (28 nm)
CPU
Quad-core 2.5 GHz Krait 400
GPU
Adreno 330
Memory
Card slot
microSDXC (dedicated slot)
Internal
16GB 3GB RAM, 32GB 3GB RAM
Main Camera
Single
20.7 MP, f/2.0, 25mm (wide), 1/2.3", 1.12µm, AF
Features
LED flash, HDR, panorama
Video
4K@30fps, 1080p@60fps, 720p@120fps, HDR
Selfie camera
Single
2.2 MP, f/2.8
Video
1080p@30fps
Sound
Loudspeaker
Yes, with stereo speakers

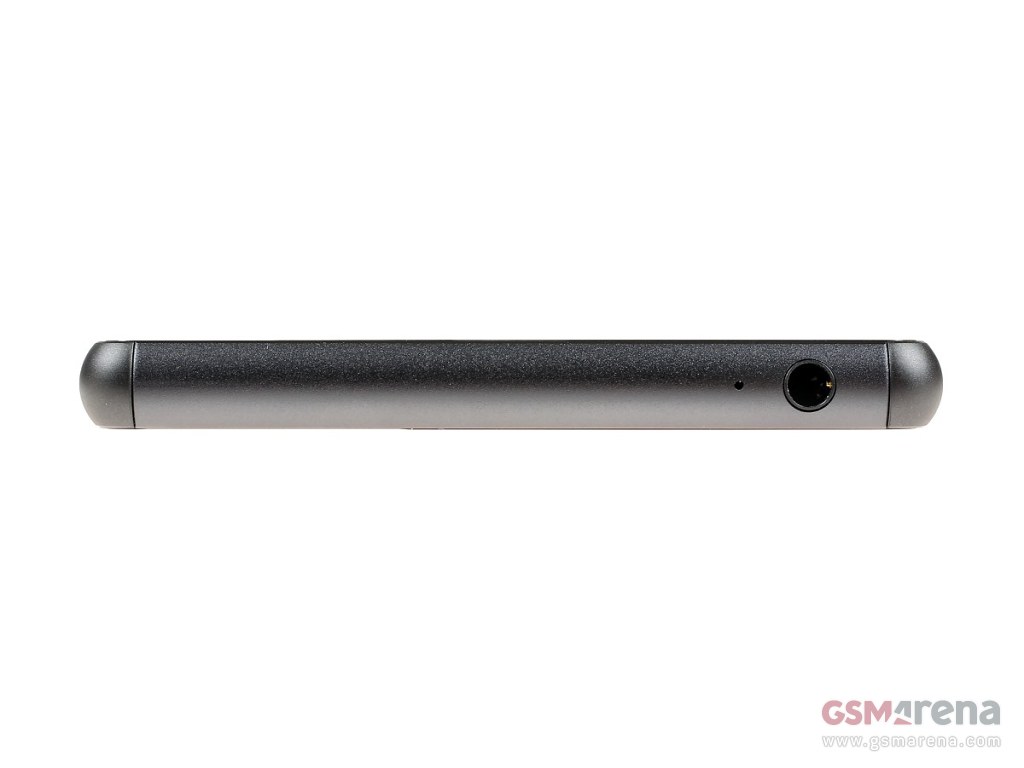

3.5mm jack
Yes
Comms
WLAN
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth
4.0, A2DP, aptX
Positioning
GPS, GLONASS, BDS
NFC
Yes
Radio
FM radio, RDS

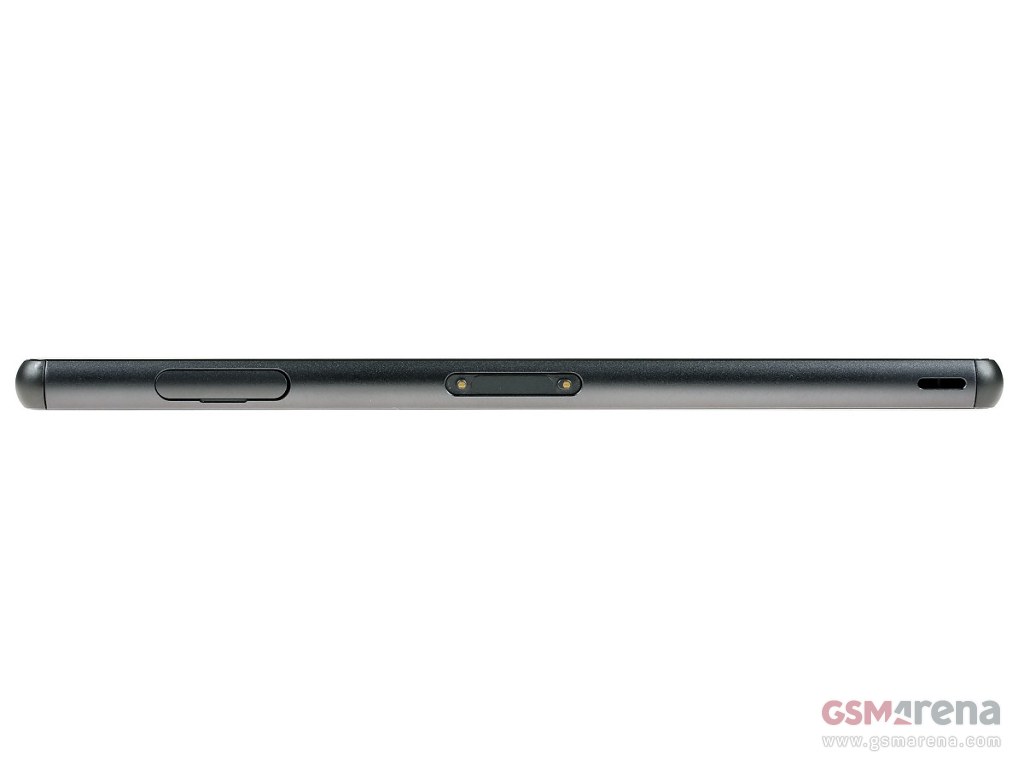

USB
microUSB 2.0 (MHL 3 TV-out), OTG, magnetic connector
Features
Sensors
Accelerometer, gyro, proximity, compass, barometer
Battery
Type
Li-Ion 3100 mAh, non-removable

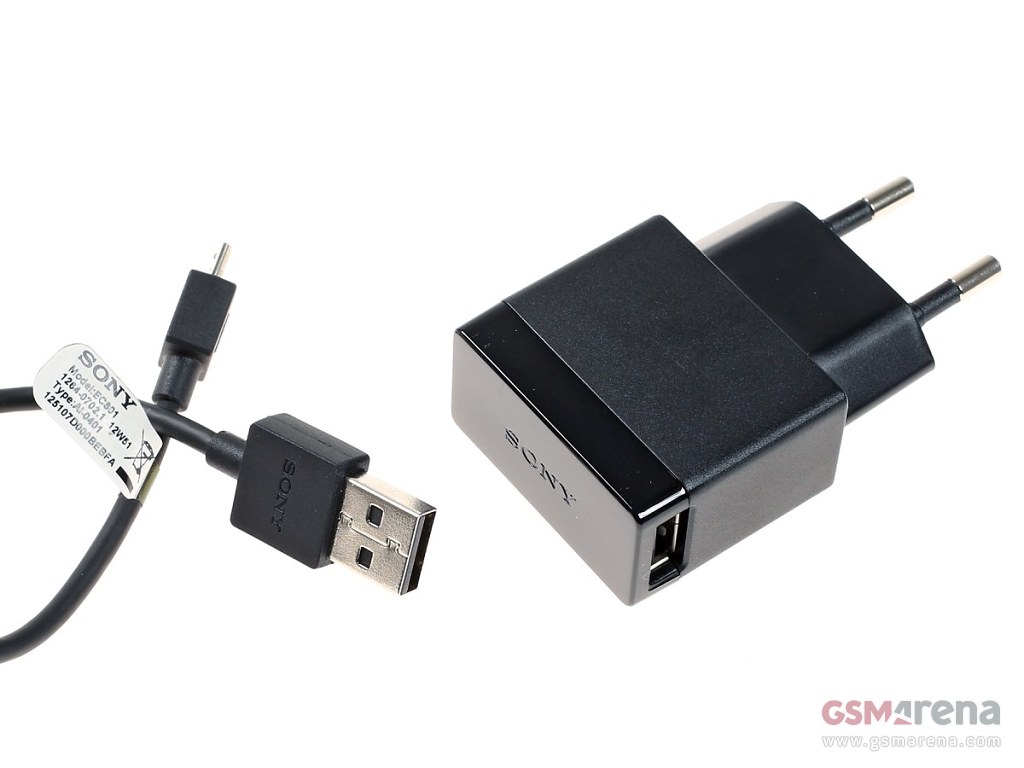

Charging
18W wired, QC2 (Japan)
Stand-by
Up to 890 h (2G) / Up to 740 h (3G)
Talk time
Up to 14 h (2G) / Up to 16 h (3G)
Music play
Up to 130 h
Misc
Colors
Black, White, Copper, Silver Green, Purple
Models
D6603, D6653, D6616, D6643, SO-01G, SOL26, D6646
SAR
0.80 W/kg (head) Â Â 1.44 W/kg (body)
SAR EU
0.62 W/kg (head) Â Â 0.65 W/kg (body)
Price
About 180 EUR
Tests
Performance
Basemark X: 12637
Display
Contrast ratio: 1333:1 (nominal), 2.618 (sunlight)
Camera
Photo / Video
Loudspeaker
Voice 69dB / Noise 66dB / Ring 67dB
Audio quality
Noise -86.4dB / Crosstalk -86.6dB
Battery (old)
Endurance rating 85h
