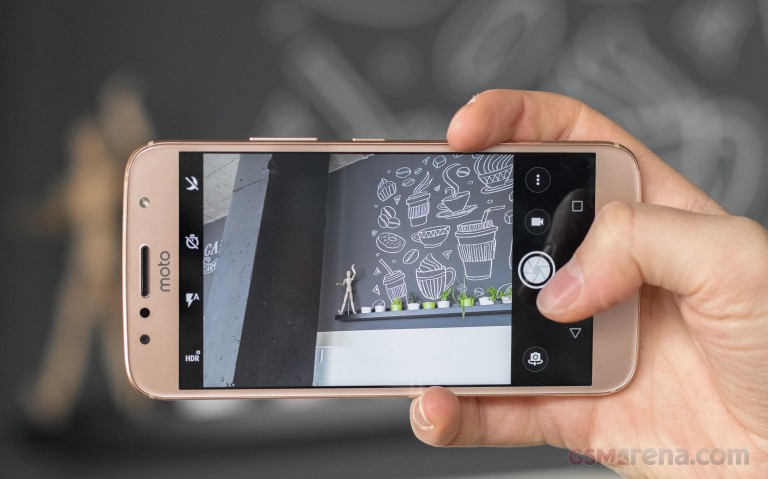

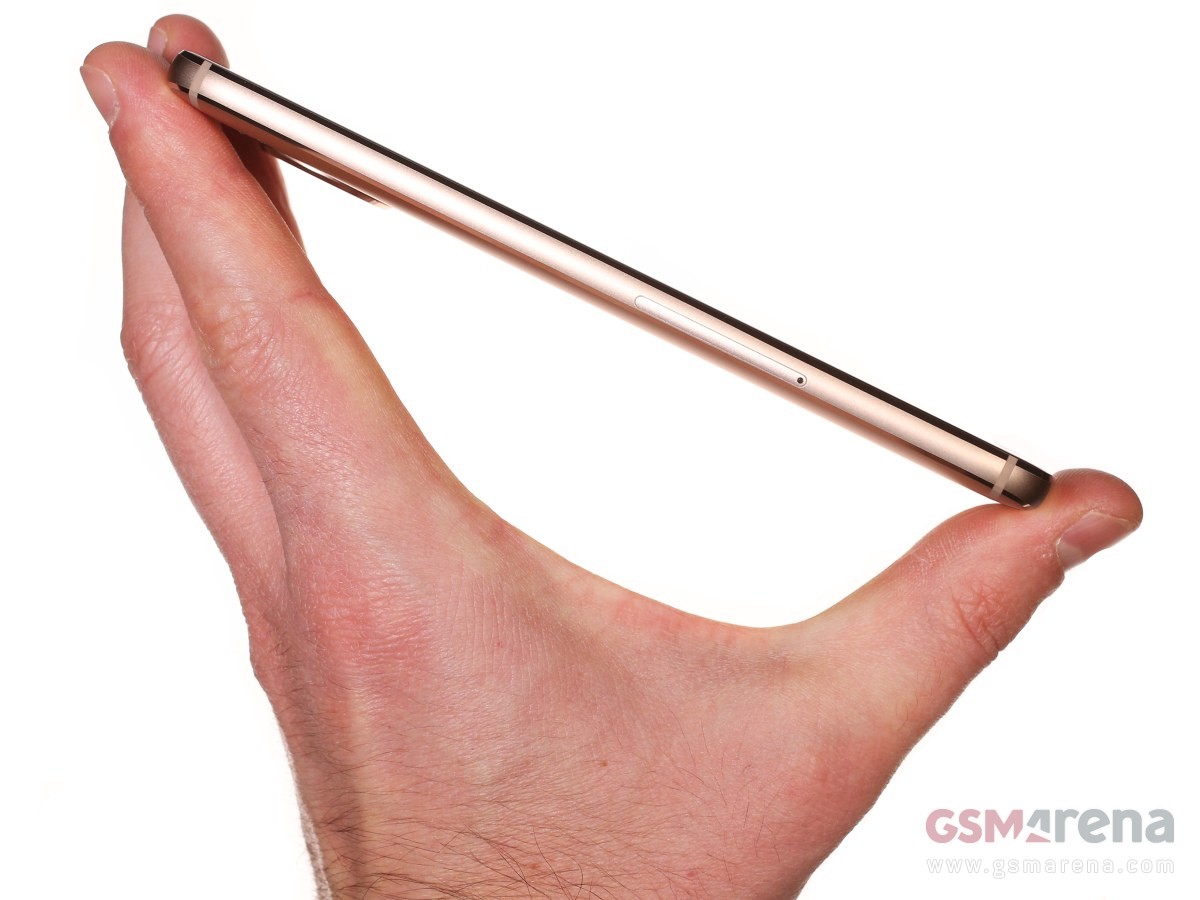

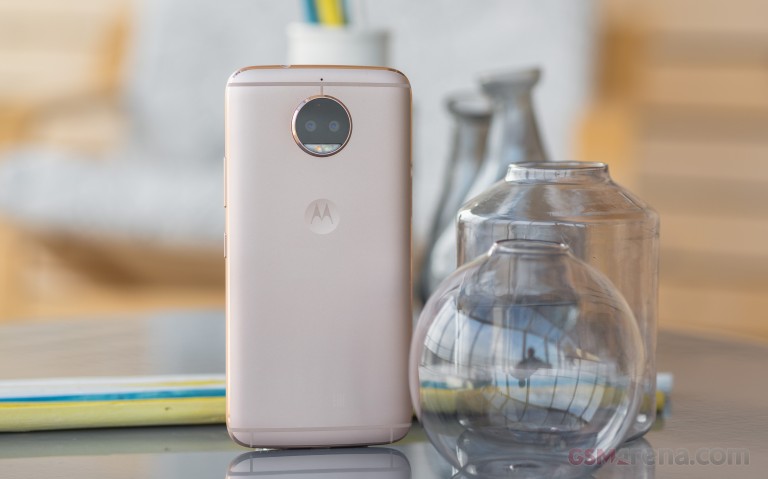

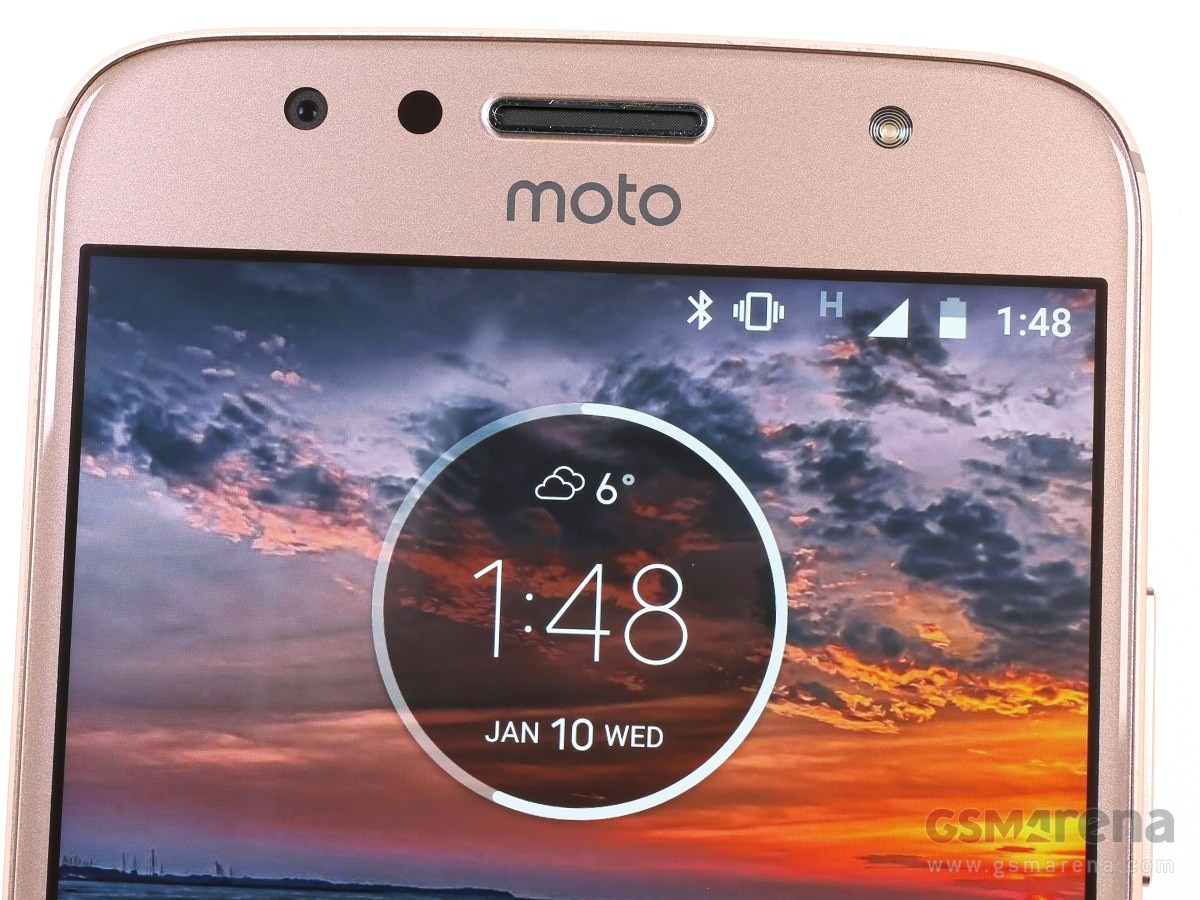

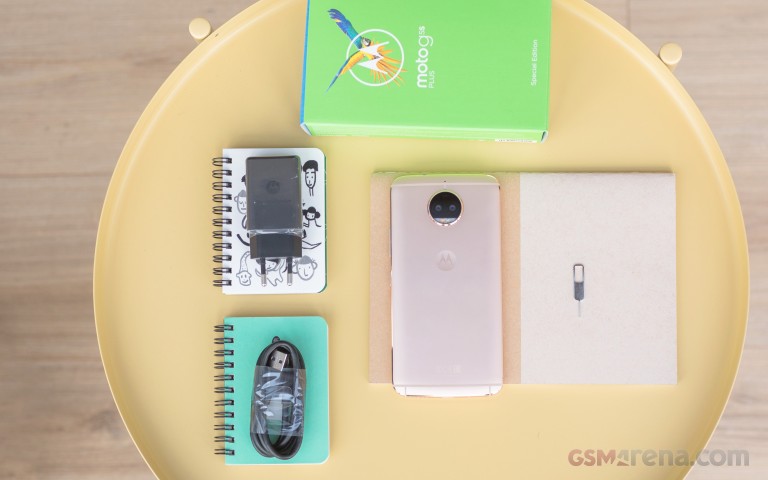

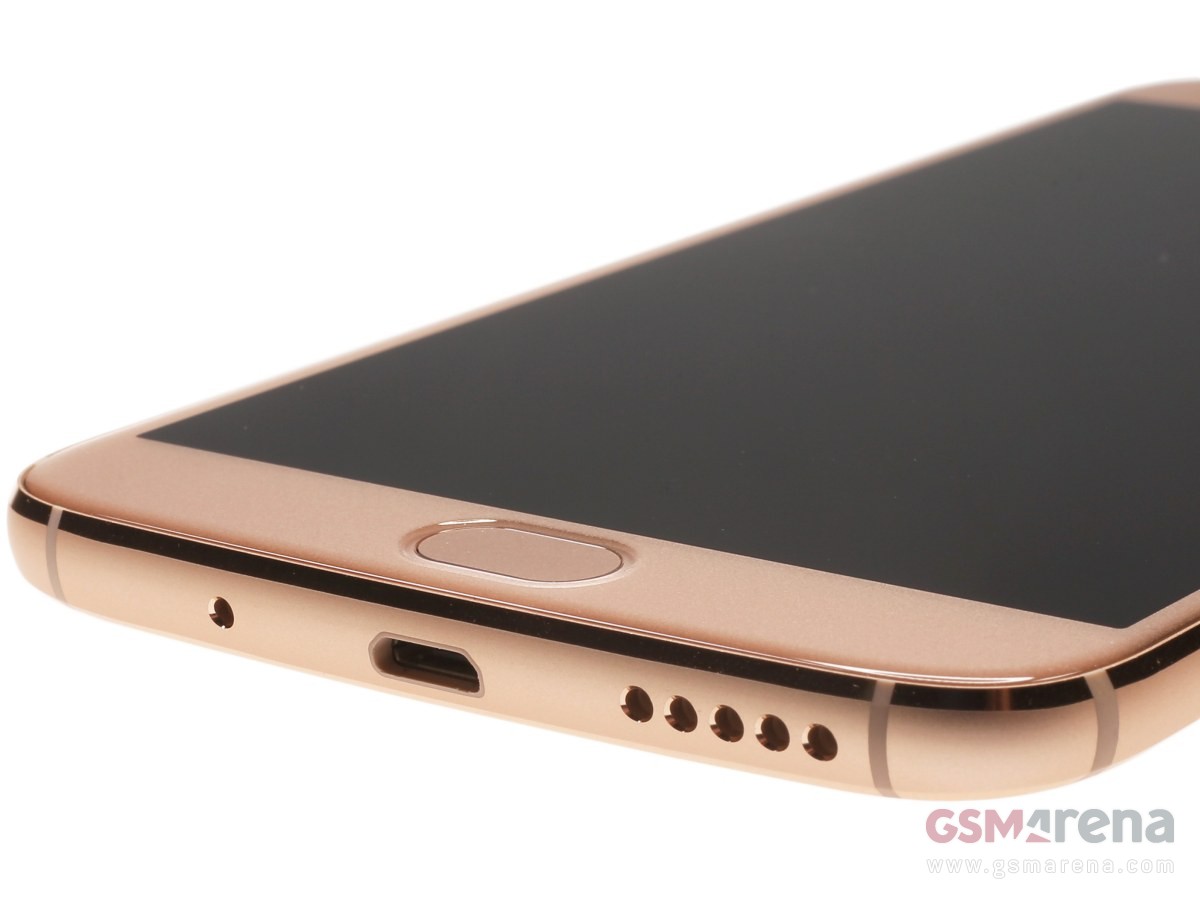

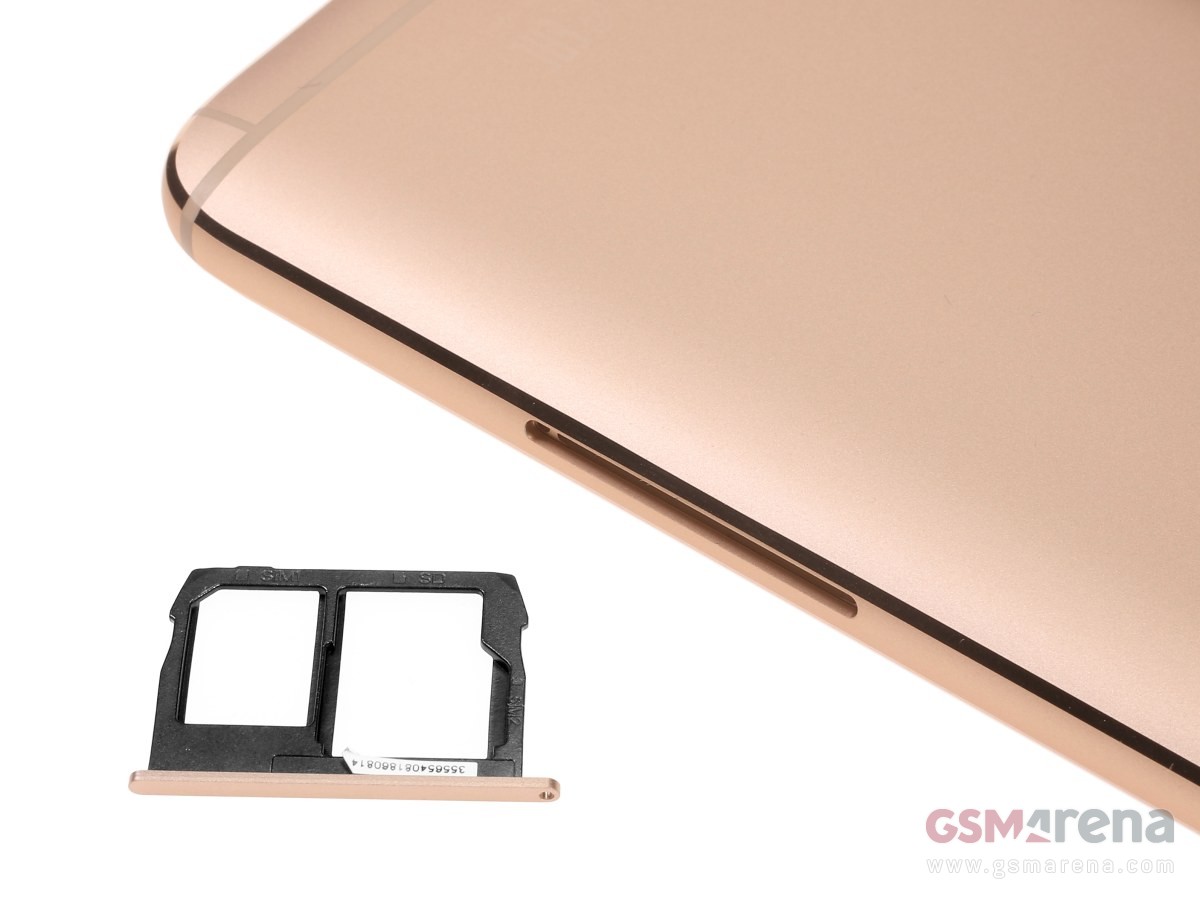

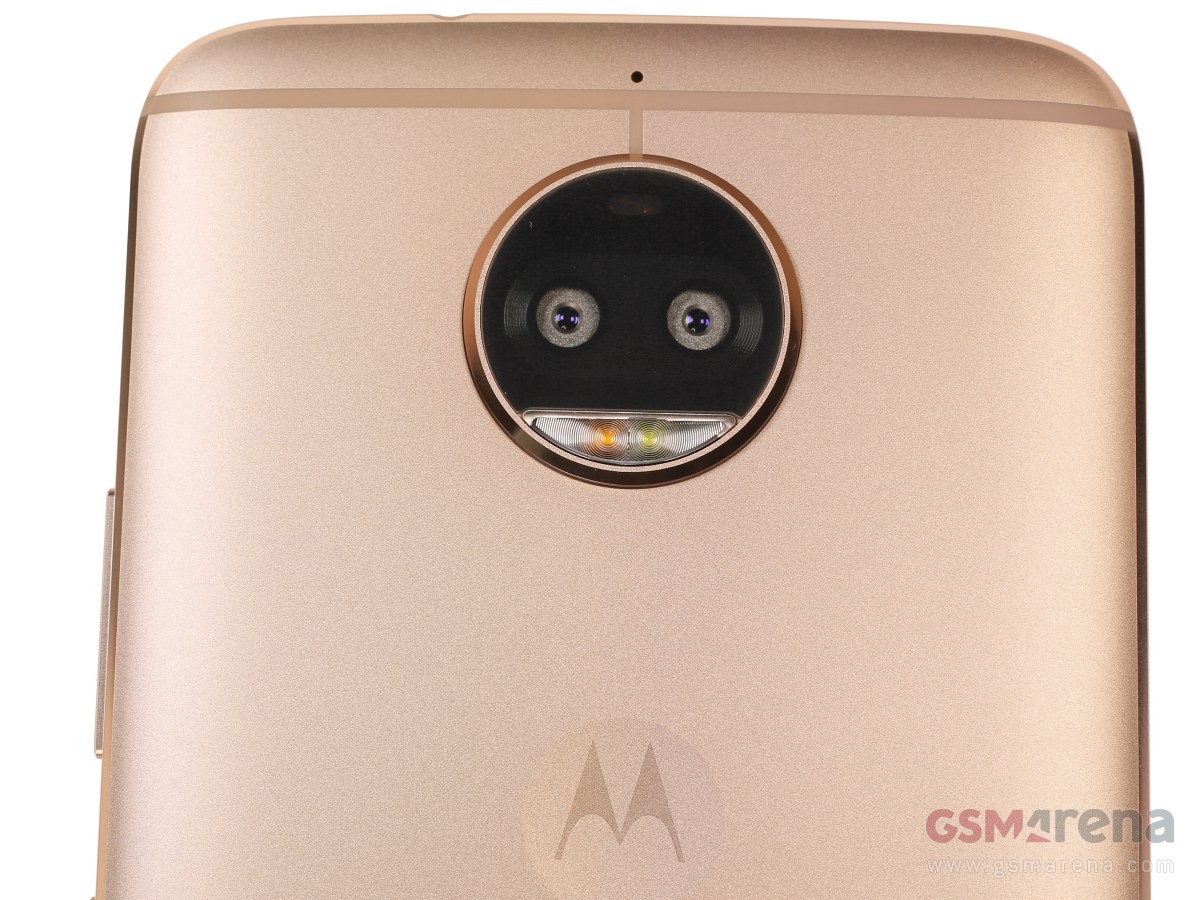

Gallery
Versions / Notes:
Versions: XT1803 (Europe); XT1805 (Europe, Dual SIM); XT1806 (USA); XT1804 (India); XT1802 (Brazil)
Versions: XT1803 (Europe); XT1805 (Europe, Dual SIM); XT1806 (USA); XT1804 (India); XT1802 (Brazil)
Detailed Specifications
Network
Technology
GSM / HSPA / LTE
2G bands
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only)
3G bands
HSDPA 850 / 900 / 1900 / 2100
4G bands
1, 2, 3, 5, 7, 8, 18, 19, 20, 26, 28, 38, 40, 41
Speed
HSPA 42.2/5.76 Mbps, LTE (2CA) Cat7 300/150 Mbps
Launch
Announced
2017, August. Released 2017, August
Status
Discontinued
Body
Dimensions
153.5 x 76.2 x 8 mm (6.04 x 3.00 x 0.31 in)
Weight
168 g (5.93 oz)
Build

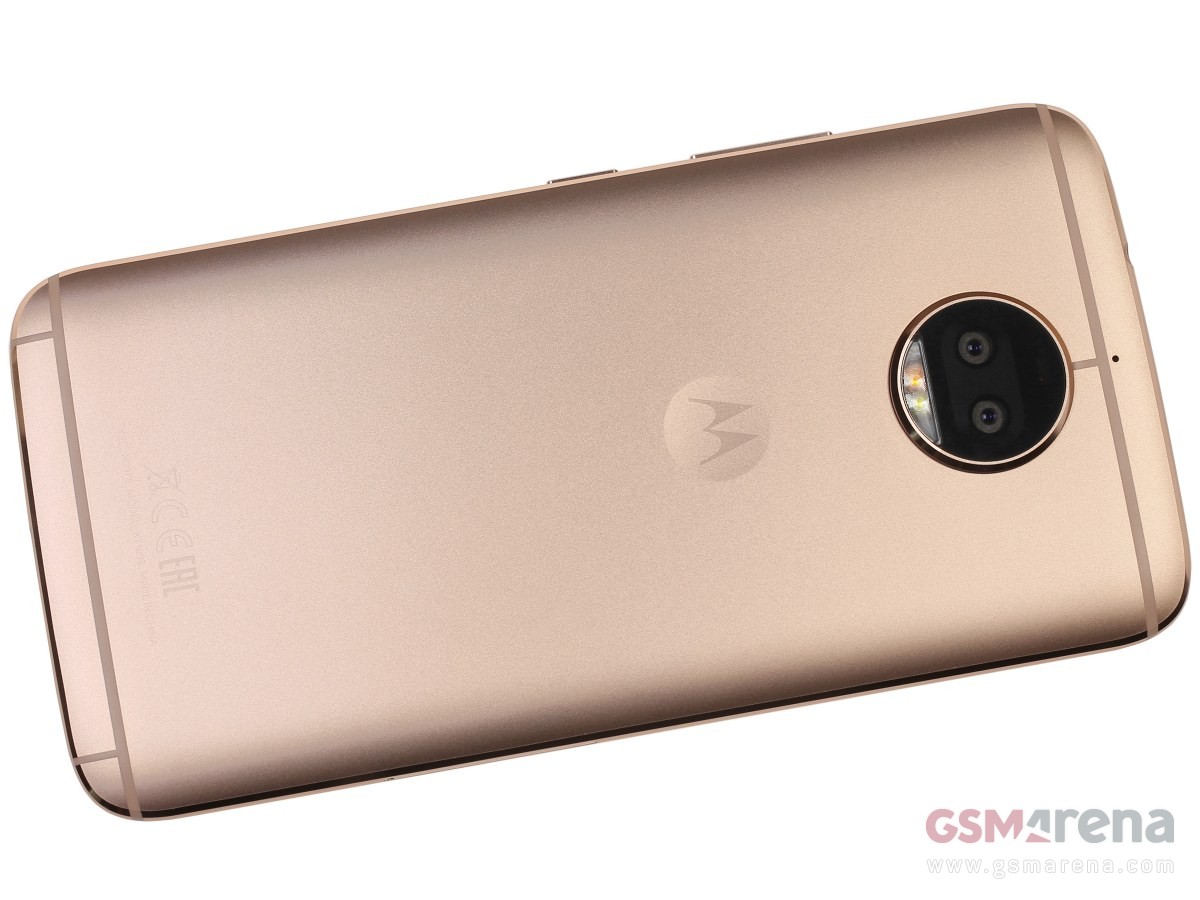

Glass front (Gorilla Glass 3), aluminum back, aluminum frame
SIM
Nano-SIMNano-SIM + Nano-SIM

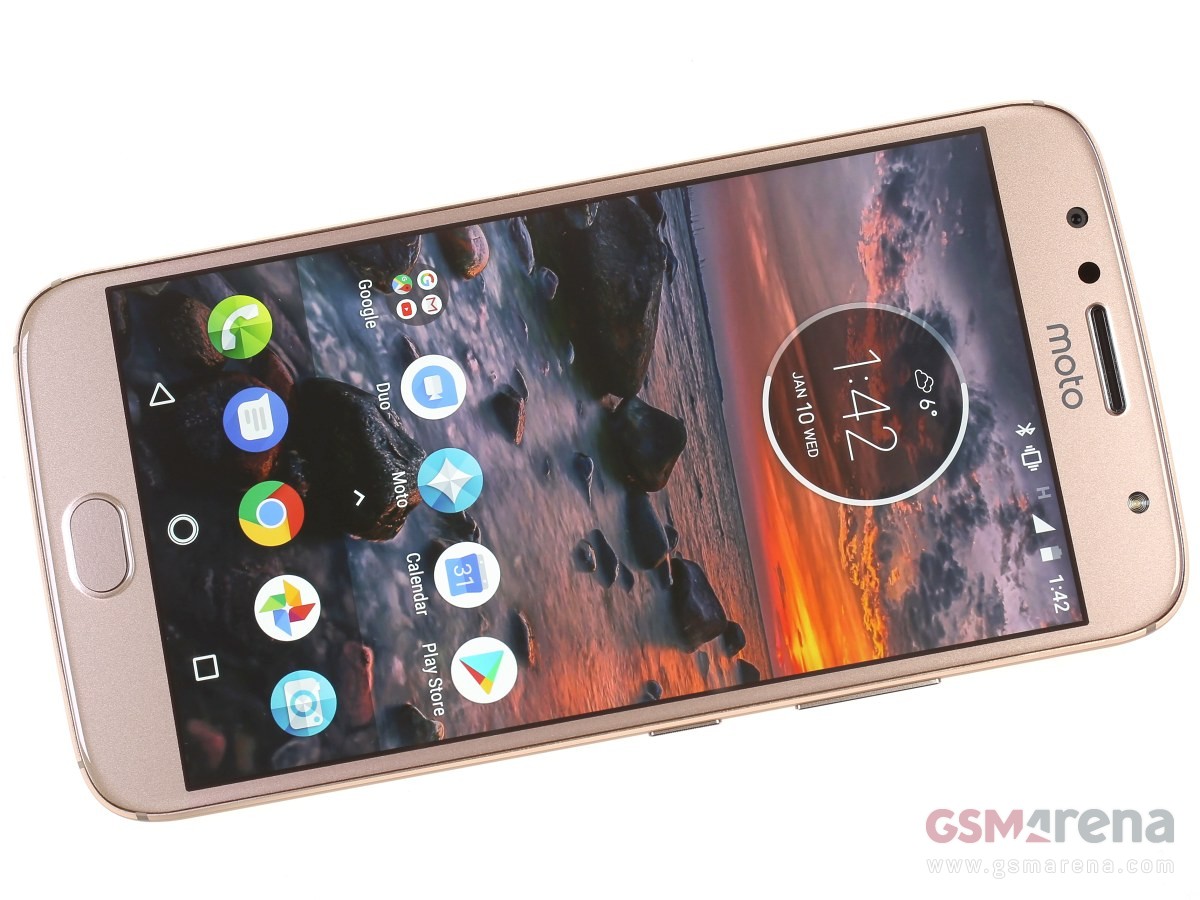

Display
Type
IPS LCD
Size
5.5 inches, 83.4 cm2 (~71.3% screen-to-body ratio)
Resolution
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Protection
Corning Gorilla Glass 3
Platform
OS
Android 7.1 (Nougat), upgradable to Android 8.1 (Oreo)
Chipset
Qualcomm MSM8953 Snapdragon 625 (14 nm)
CPU
Octa-core 2.0 GHz Cortex-A53
GPU
Adreno 506
Memory
Card slot
microSDXC (uses shared SIM slot)
Internal
32GB 3GB RAM, 64GB 4GB RAM

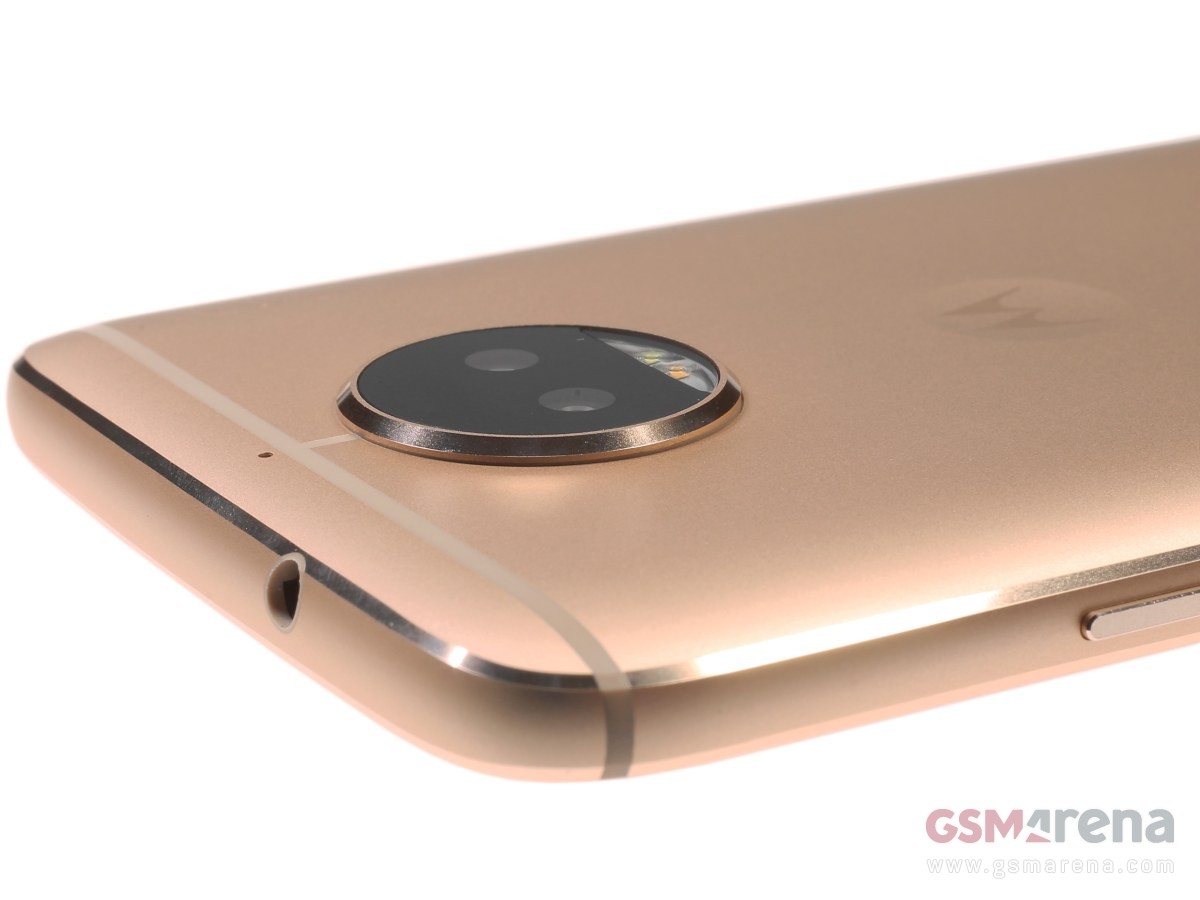

Main Camera
Single
13 MP, f/2.0, AF
13 MP, (depth)
13 MP, (depth)
Features
Dual-LED dual-tone flash, panorama
Video
4K@30fps, 1080p@60fps, 1080p@30fps (gyro-EIS)
Selfie camera
Single
8 MP, f/2.0
Features
LED flash
Video
1080p@30fps, 480p@120fps
Sound
Loudspeaker
Yes
3.5mm jack
Yes
Comms
WLAN
Wi-Fi 802.11 a/b/g/n, dual-band, Wi-Fi Direct
Bluetooth
4.2, A2DP, LE, EDR, aptX
Positioning
GPS, GLONASS
NFC
Yes (market dependent)
Radio
FM radio
USB
microUSB 2.0
Features
Sensors

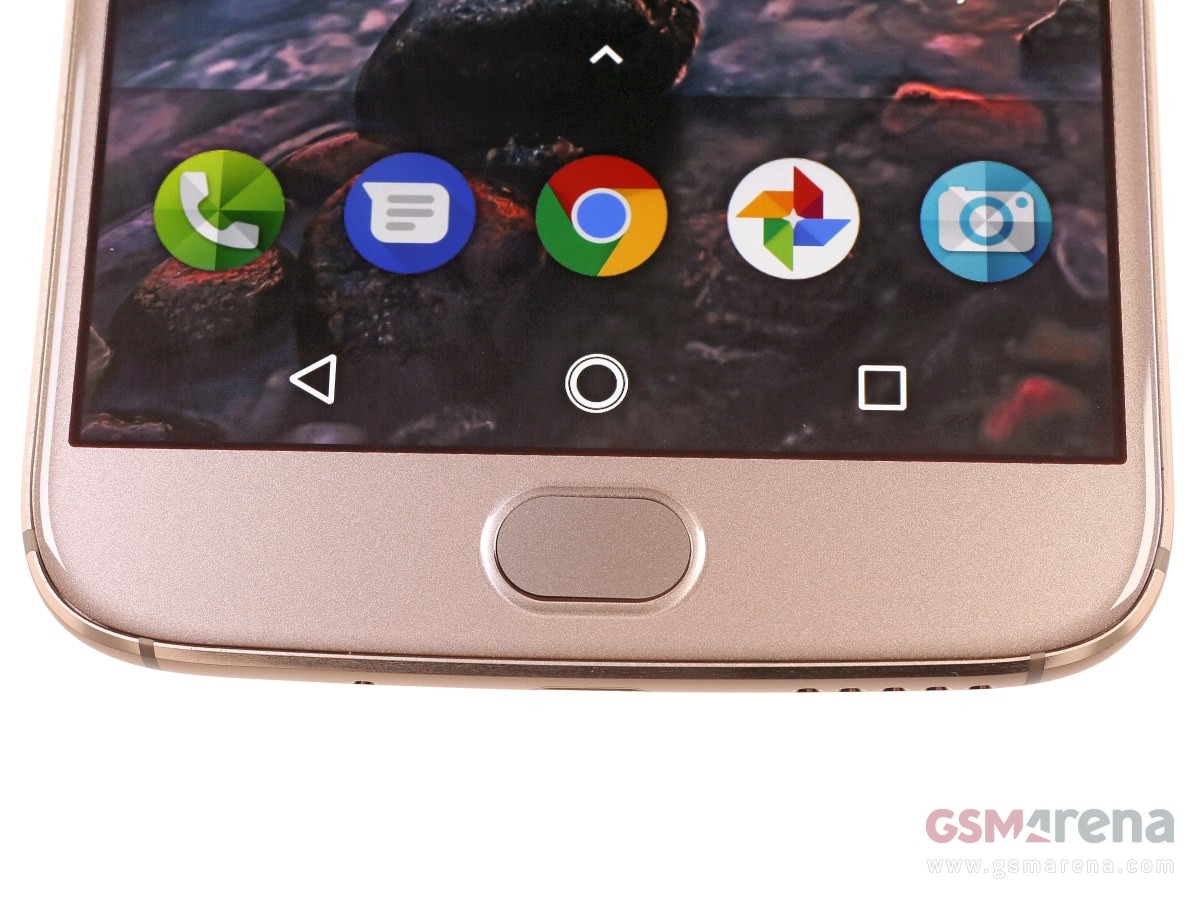

Fingerprint (front-mounted), accelerometer, gyro, proximity
Battery
Type
Li-Ion 3000 mAh, non-removable
Charging
15W wired
Misc
Colors
Lunar Gray, Fine Gold
Models
XT1803, XT1805, XT1806, XT1804, Moto G5S Plus (XT1804)
SAR
0.10 W/kg (head)   1.08 W/kg (body)
SAR EU
0.38 W/kg (head)   1.27 W/kg (body)
Price
About 160 EUR
Tests
Performance
GeekBench: 4331 (v4.4)
GFXBench: 3.8fps (ES 3.1 onscreen)
GFXBench: 3.8fps (ES 3.1 onscreen)
Display
Contrast ratio: 1354:1 (nominal), 2.736 (sunlight)
Camera
Photo / Video
Loudspeaker
Voice 91dB / Noise 74dB / Ring 86dB
Audio quality
Noise -34.8dB / Crosstalk -93.4dB
Battery (old)
Endurance rating 81h
