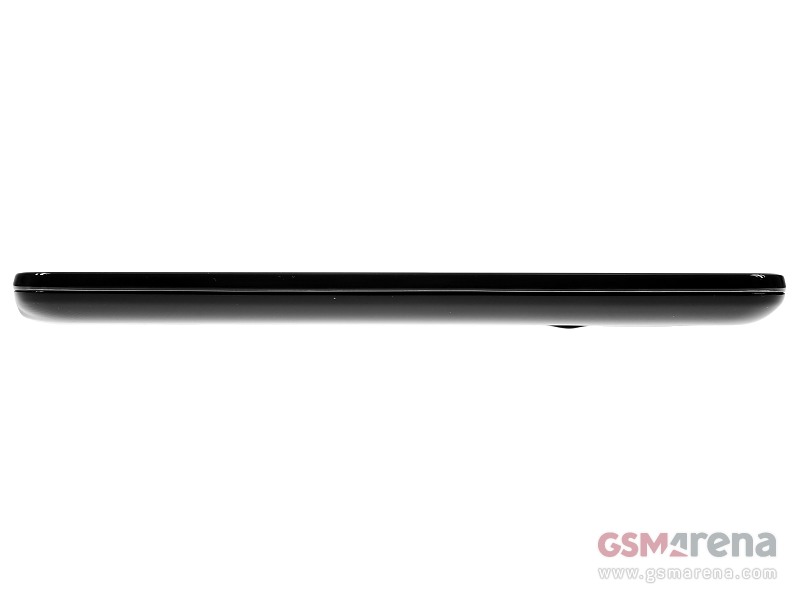

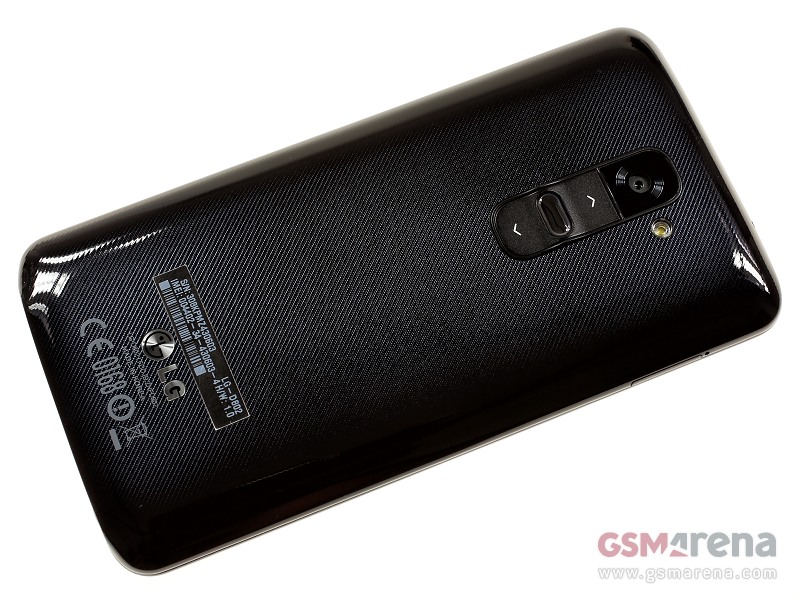

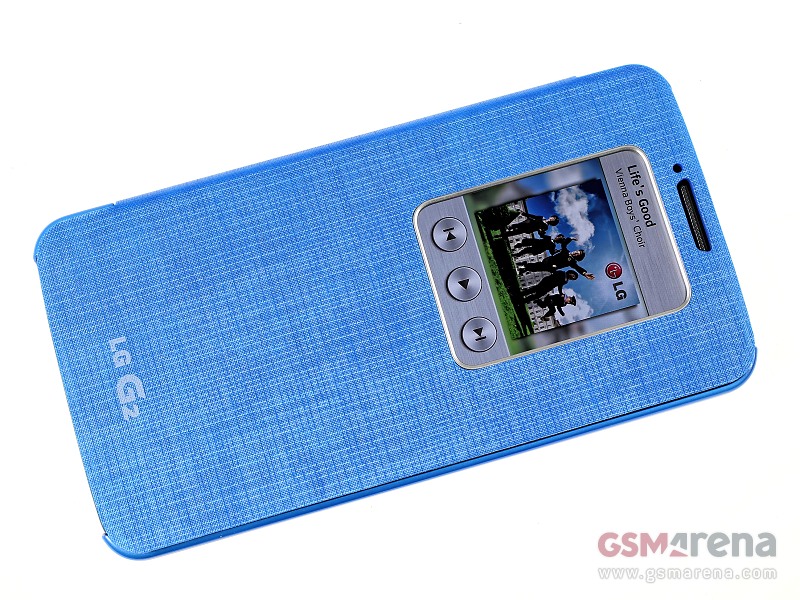

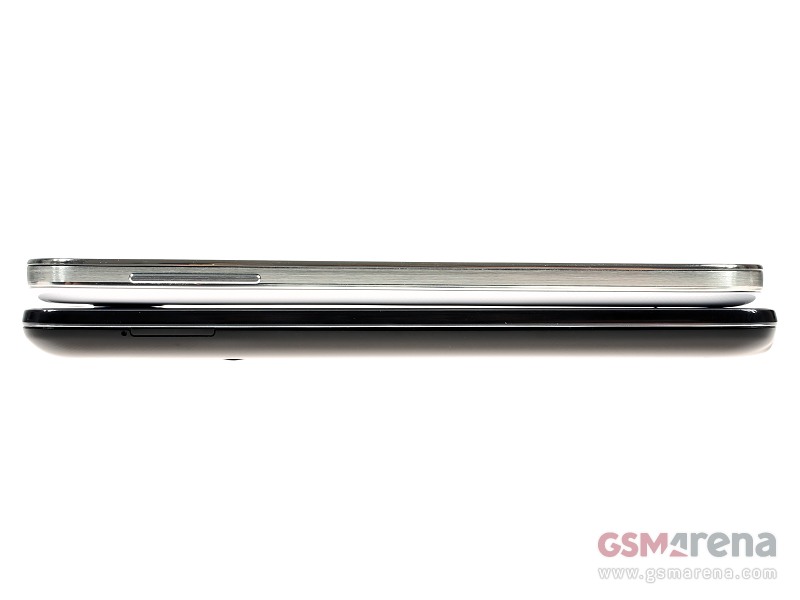

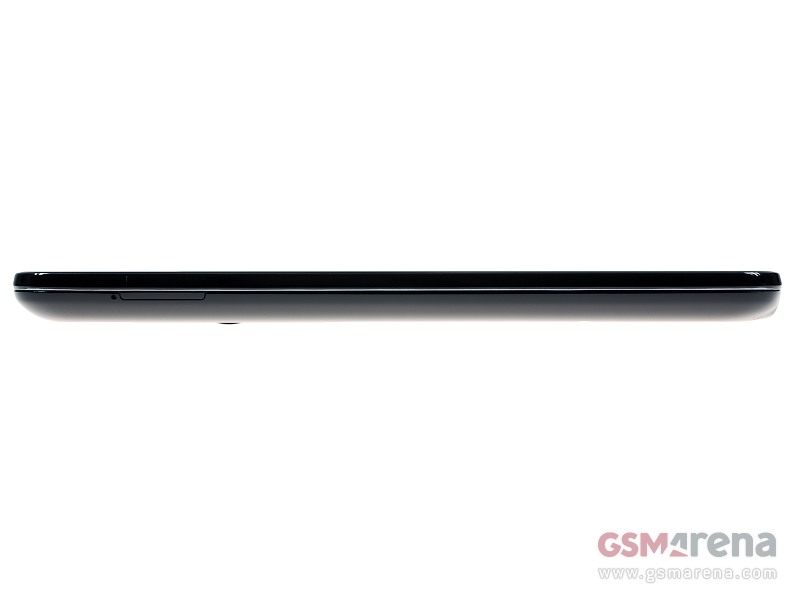

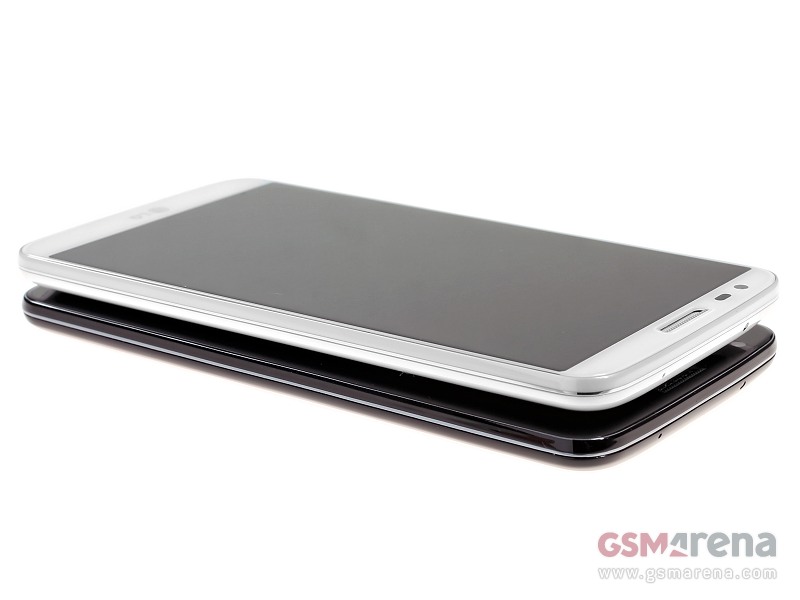

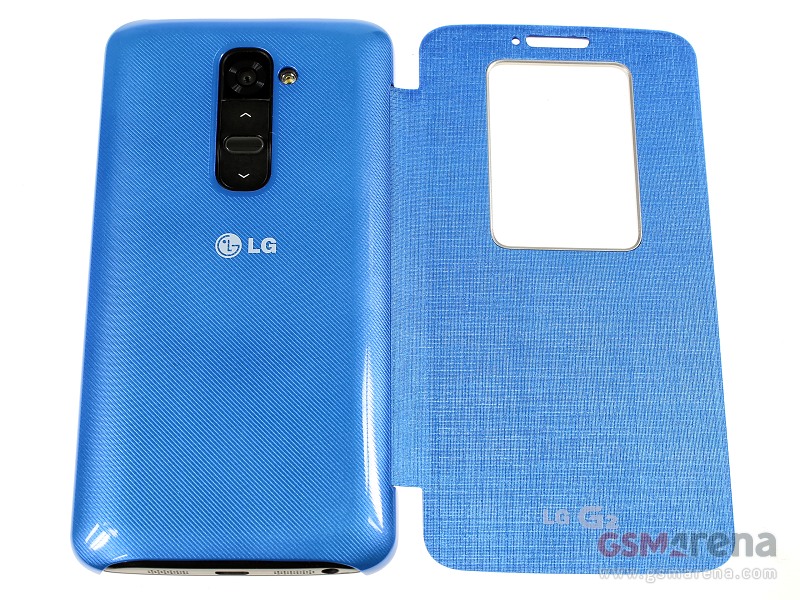

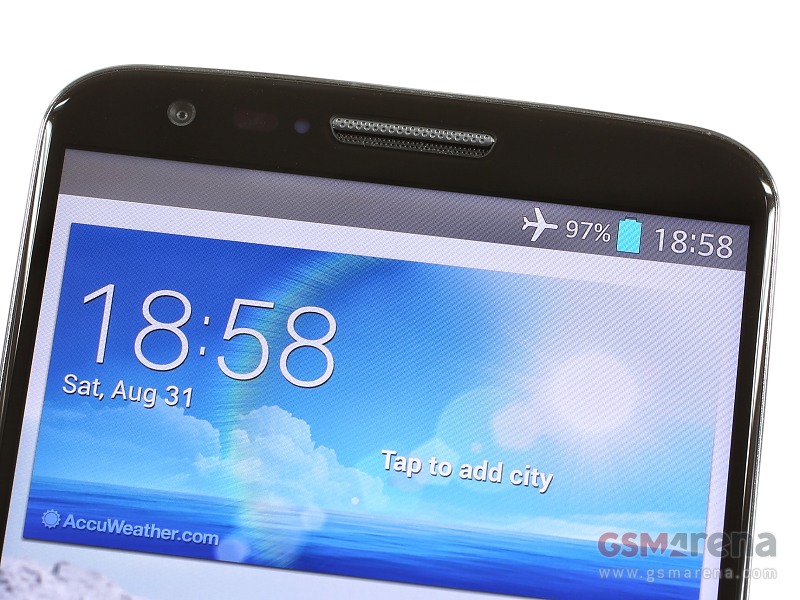

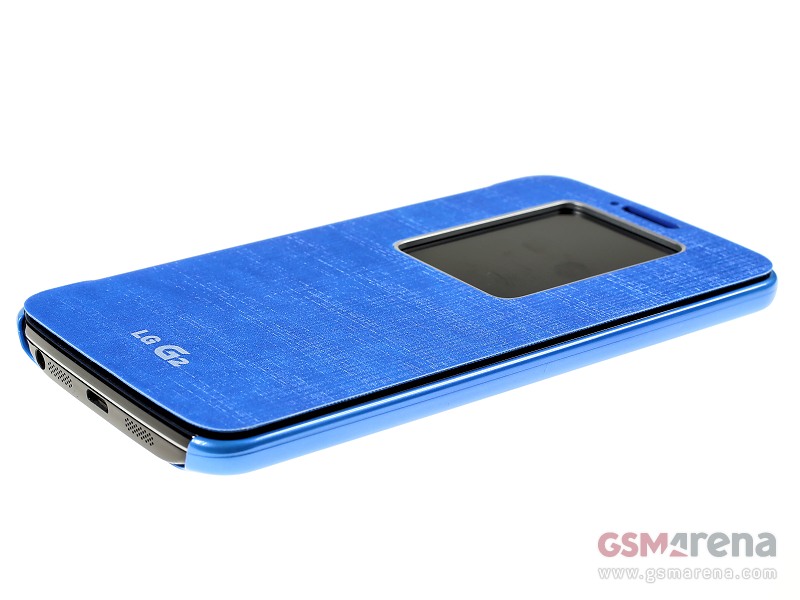

Gallery
Versions / Notes:
Versions: D800 (AT&T); D802 (Europe); D801 (T-Mobile); D802TA (Australia); D803 (Canada); VS980 (Verizon); LS980 (Sprint)
Versions: D800 (AT&T); D802 (Europe); D801 (T-Mobile); D802TA (Australia); D803 (Canada); VS980 (Verizon); LS980 (Sprint)
Detailed Specifications
Network
Technology
GSM / CDMA / HSPA / EVDO / LTE
2G bands
GSM 850 / 900 / 1800 / 1900 - D800, D802, VS980, LS980
3G bands
HSDPA 850 / 900 / 1900 / 2100 - D802, VS980
4G bands
1, 3, 7, 8, 20 - D802
Speed
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps, EV-DO Rev.A 3.1 Mbps
Launch
Announced
2013, August. Released 2013, September
Status
Discontinued
Body
Dimensions
138.5 x 70.9 x 8.9 mm (5.45 x 2.79 x 0.35 in)
Weight
143 g (5.04 oz)
Build
Glass front (Gorilla Glass 2), plastic back, plastic frame
SIM
Micro-SIM
Display
Type
True HD-IPS + LCD
Size
5.2 inches, 74.5 cm2 (~75.9% screen-to-body ratio)
Resolution
1080 x 1920 pixels, 16:9 ratio (~424 ppi density)
Protection
Corning Gorilla Glass 2
Platform
OS
Android 4.2.2 (Jelly Bean), upgradable to 5.0.2 (Lollipop)
Chipset
Qualcomm MSM8974 Snapdragon 800 (28 nm)
CPU
Quad-core 2.26 GHz Krait 400
GPU
Adreno 330
Memory
Card slot
No
Internal
16GB 2GB RAM, 32GB 2GB RAM
Main Camera
Single
13 MP, f/2.4, 29mm (standard), 1/3.1", 1.12µm, AF, OIS
Features
LED flash, HDR
Video
1080p@60fps, HDR, stereo sound rec.
Selfie camera
Single
2.1 MP
Video
1080p@30fps
Sound
Loudspeaker
Yes
3.5mm jack
Yes
Comms
WLAN
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth
4.0, A2DP, LE, aptX
Positioning
GPS, GLONASS
NFC
Yes
Infrared port
Yes
Radio
Stereo FM radio, RDS
USB
microUSB 2.0 (SlimPort), OTG
Features
Sensors
Accelerometer, gyro, proximity, compass
Battery
Type
Li-Po 3000 mAh, non-removable
Stand-by
Up to 790 h (2G) / Up to 900 h (3G)
Talk time
Up to 16 h 30 min (2G) / Up to 17 h 30 min (3G)
Misc
Colors
Black, White, Red, Gold
Models
D802, D801, D803, F320K, LS980, D800, F320L, F320S, D802TR
SAR
0.50 W/kg (head) 0.69 W/kg (body)
SAR EU
0.41 W/kg (head) 0.47 W/kg (body)
Price
About 270 EUR
Tests
Performance
Basemark X: 11101
Display
Contrast ratio: 1495:1 (nominal) / 1.976:1 (sunlight)
Camera
Photo / Video
Loudspeaker
Voice 65dB / Noise 62dB / Ring 66dB
Audio quality
Noise -91.9dB / Crosstalk -91.3dB
Battery (old)
Endurance rating 81h
