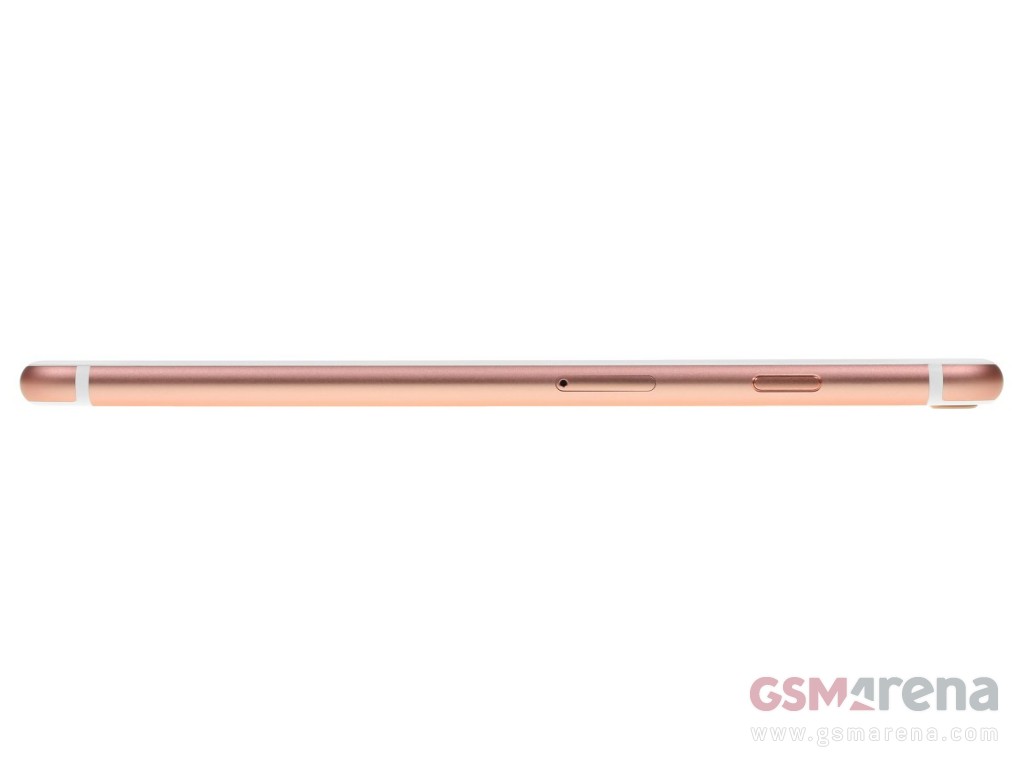

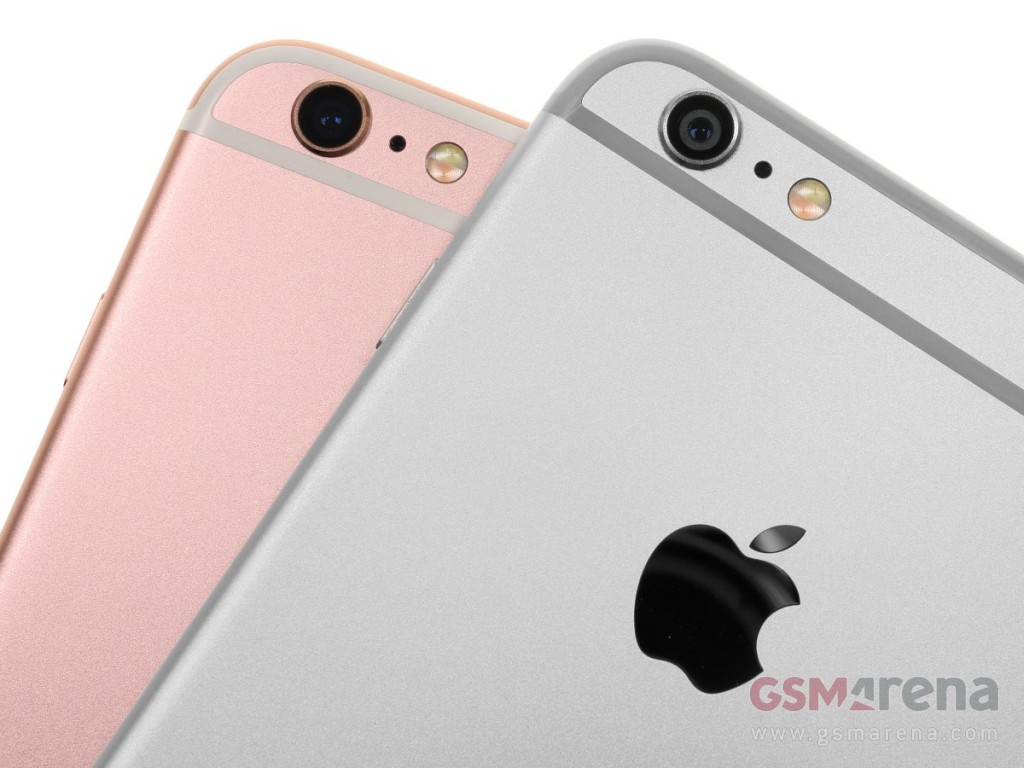

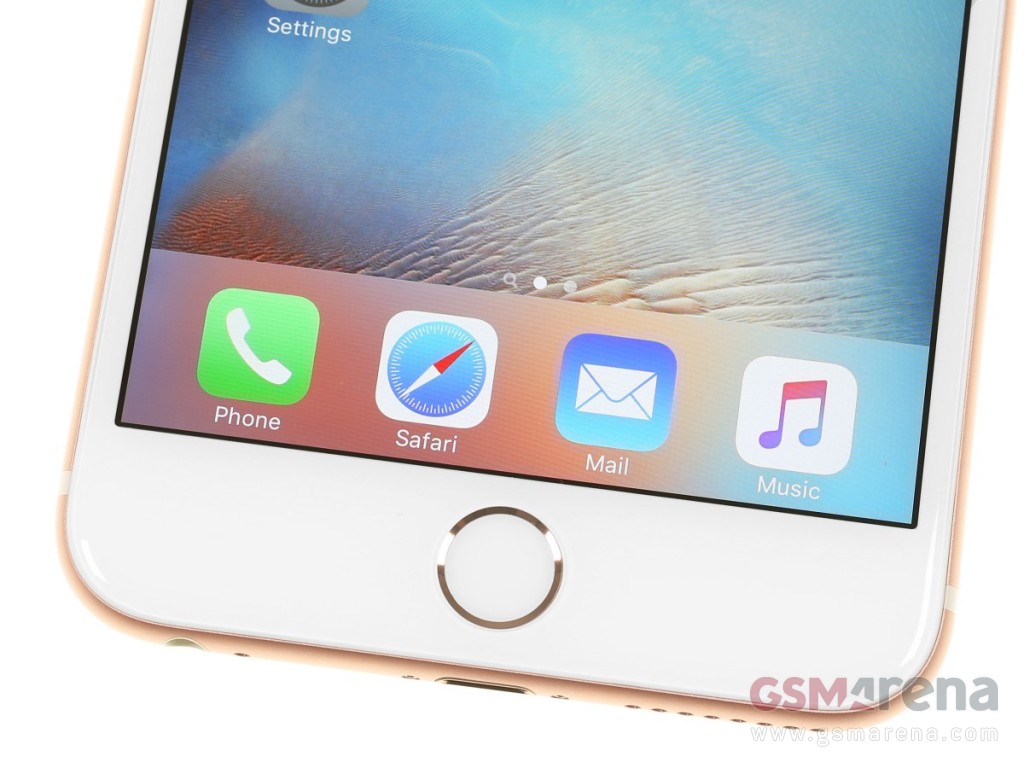

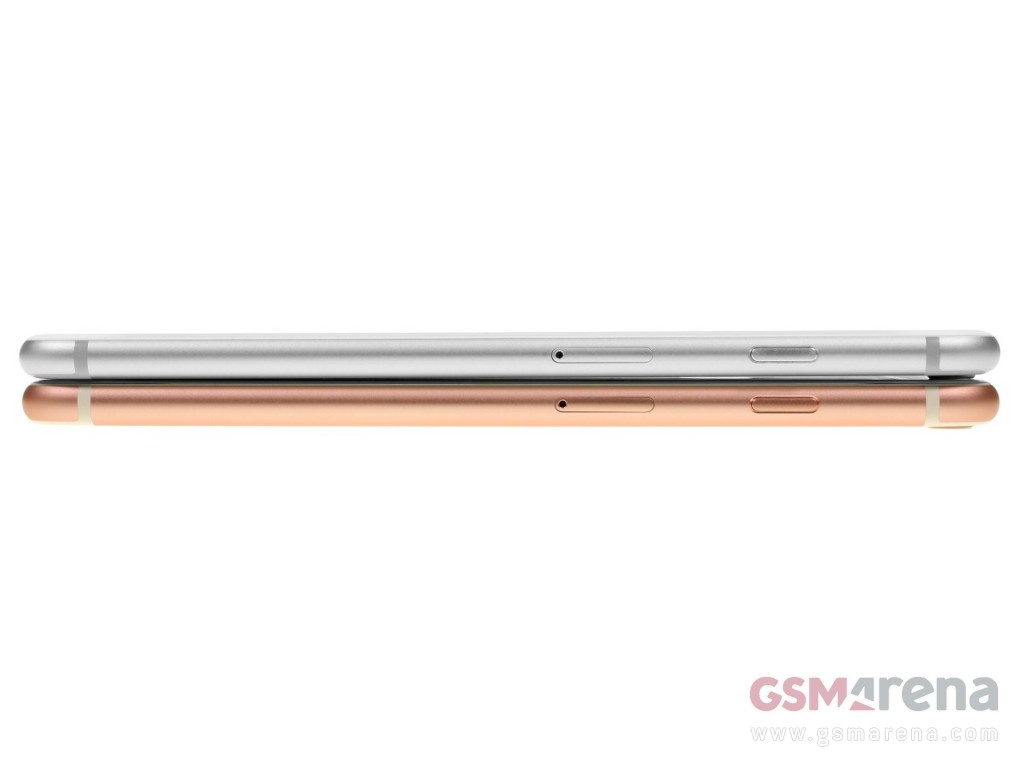

Gallery
Detailed Specifications
Network
Technology
GSM / CDMA / HSPA / EVDO / LTE
2G bands
GSM 850 / 900 / 1800 / 1900
3G bands
HSDPA 850 / 900 / 1700 / 1900 / 2100
4G bands
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30 - A1633
Speed
HSPA 42.2/5.76 Mbps, LTE (2CA) Cat6 300/50 Mbps, EV-DO Rev.A 3.1 Mbps
Launch
Announced
2015, September 09. Released 2015, September 25
Status
Discontinued
Body

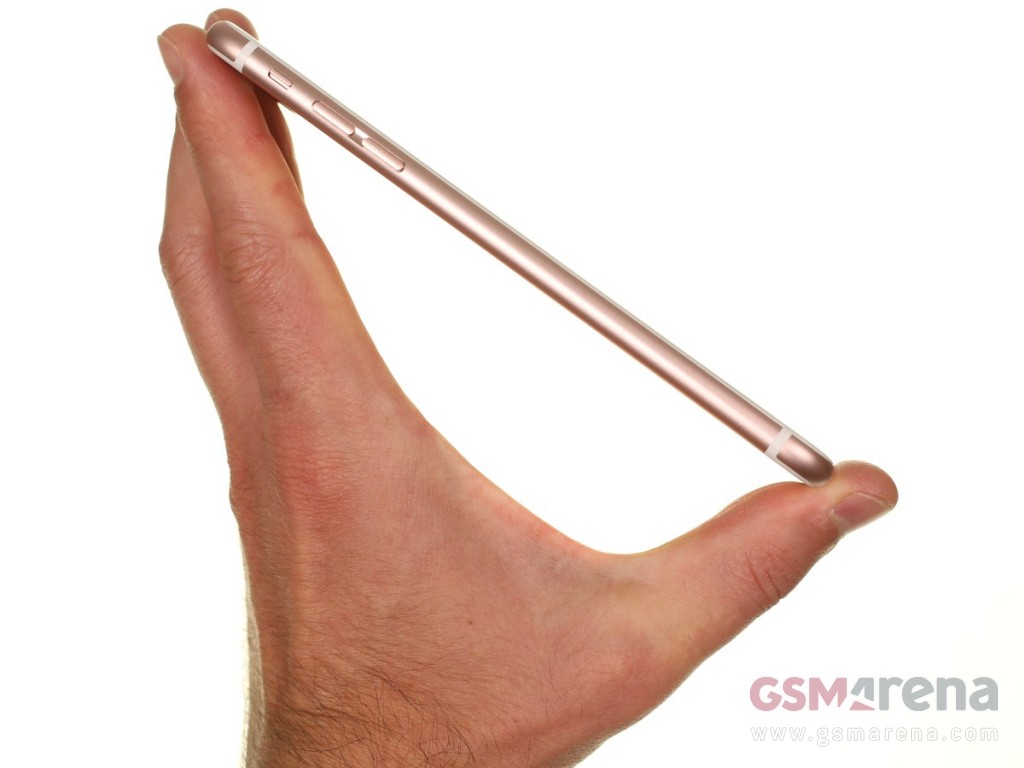

Dimensions
158.2 x 77.9 x 7.3 mm (6.23 x 3.07 x 0.29 in)
Weight
192 g (6.77 oz)
Build
Glass front (Corning-made glass), aluminum back, aluminum frame

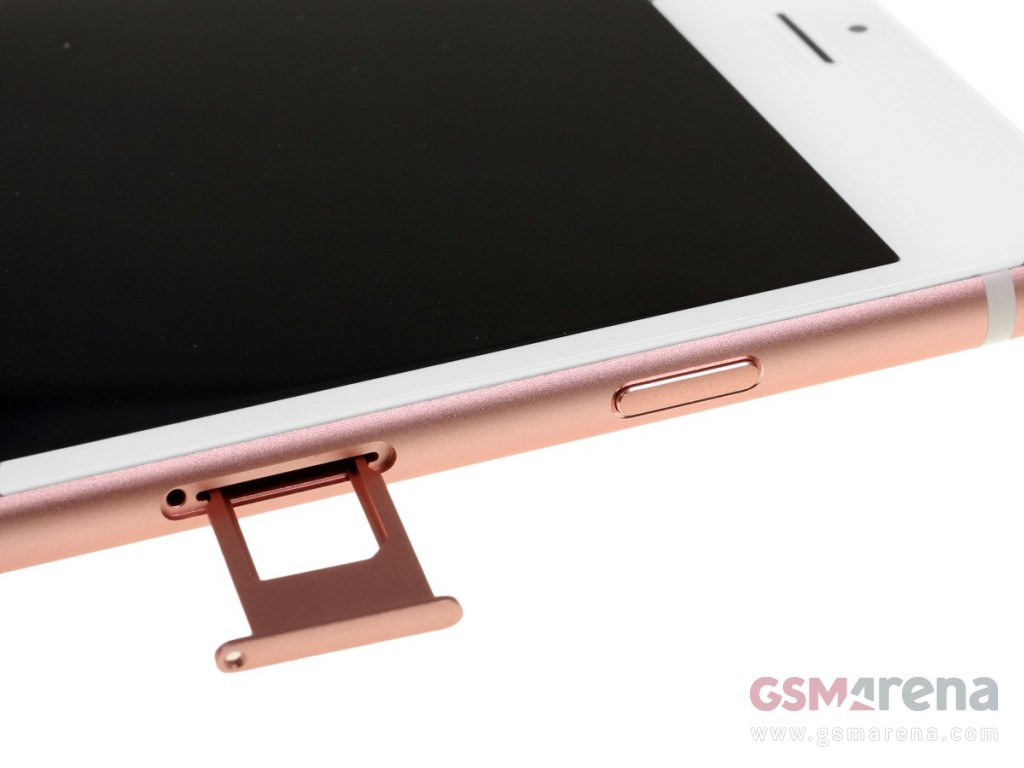

SIM
Nano-SIM

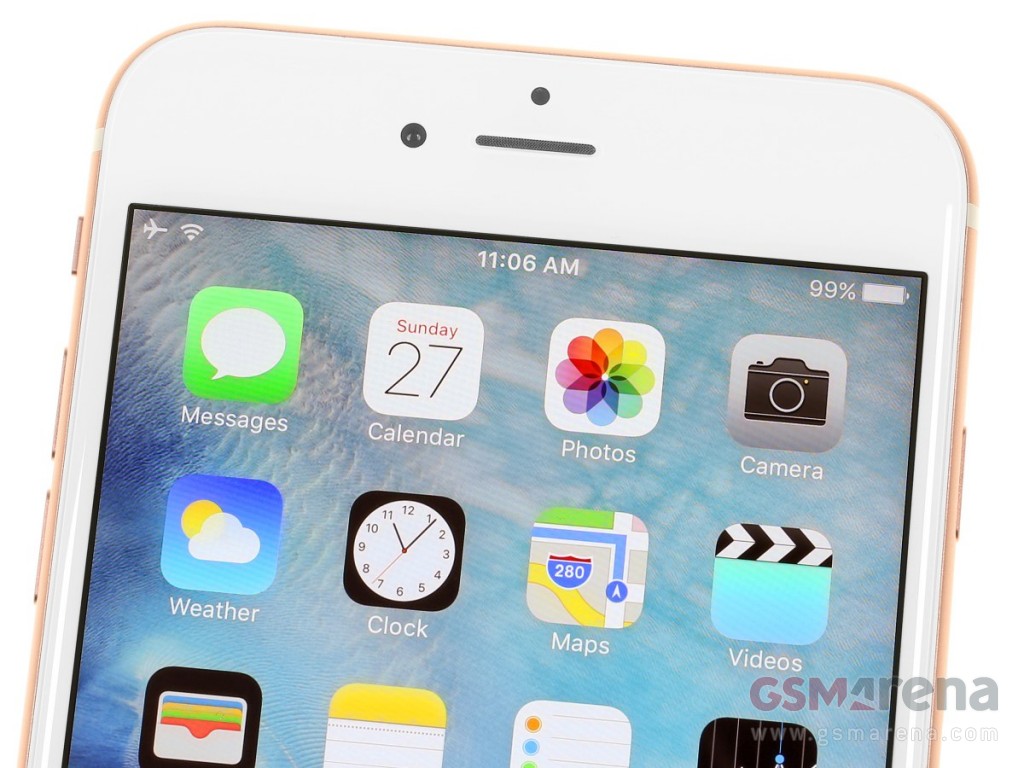

Display
Type
IPS LCD
Size
5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio)
Resolution
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Protection
Ion-strengthened glass, oleophobic coating
Platform
OS
iOS 9, upgradable to iOS 15.8.1
Chipset
Apple A9 (14/16 nm - maker dependant)
CPU
Dual-core 1.84 GHz Twister
GPU
PowerVR GT7600 (six-core graphics)
Memory
Card slot
No
Internal
16GB 2GB RAM, 32GB 2GB RAM, 64GB 2GB RAM, 128GB 2GB RAM
Main Camera
Single
12 MP, f/2.2, 29mm (standard), 1/3.0", 1.22µm, PDAF, OIS
Features
Dual-LED dual-tone flash, HDR
Video
4K@30fps, 1080p@60fps, 1080p@120fps, 720p@240fps
Selfie camera
Single
5 MP, f/2.2, 31mm (standard)
Features
Face detection, HDR, panorama
Video
720p@30fps
Sound
Loudspeaker
Yes
3.5mm jack
Yes
Comms
WLAN
Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
Bluetooth
4.2, A2DP, LE
Positioning
GPS, GLONASS, GALILEO, QZSS
NFC
Yes (Apple Pay only)
Radio
No
USB
Lightning, USB 2.0
Features
Sensors
Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer
Battery
Type
Li-Ion 2750 mAh, non-removable (10.45 Wh)
Stand-by
Up to 384 h (3G)
Talk time
Up to 24 h (3G)
Misc
Colors
Space Gray, Silver, Gold, Rose Gold
Models
A1634, A1687, A1690, A1699, iPhone8,2
SAR
1.12 W/kg (head)   1.14 W/kg (body)
SAR EU
0.93 W/kg (head)   0.98 W/kg (body)
Price
About 240 EUR
Tests
Performance
Basemark OS II 2.0: 2261
Display
Contrast ratio: 1382:1 (nominal), 3.530 (sunlight)
Camera
Photo / Video
Loudspeaker
Voice 65dB / Noise 65dB / Ring 64dB
Audio quality
Noise -93.4dB / Crosstalk -71.1dB
Battery (old)
Endurance rating 85h
